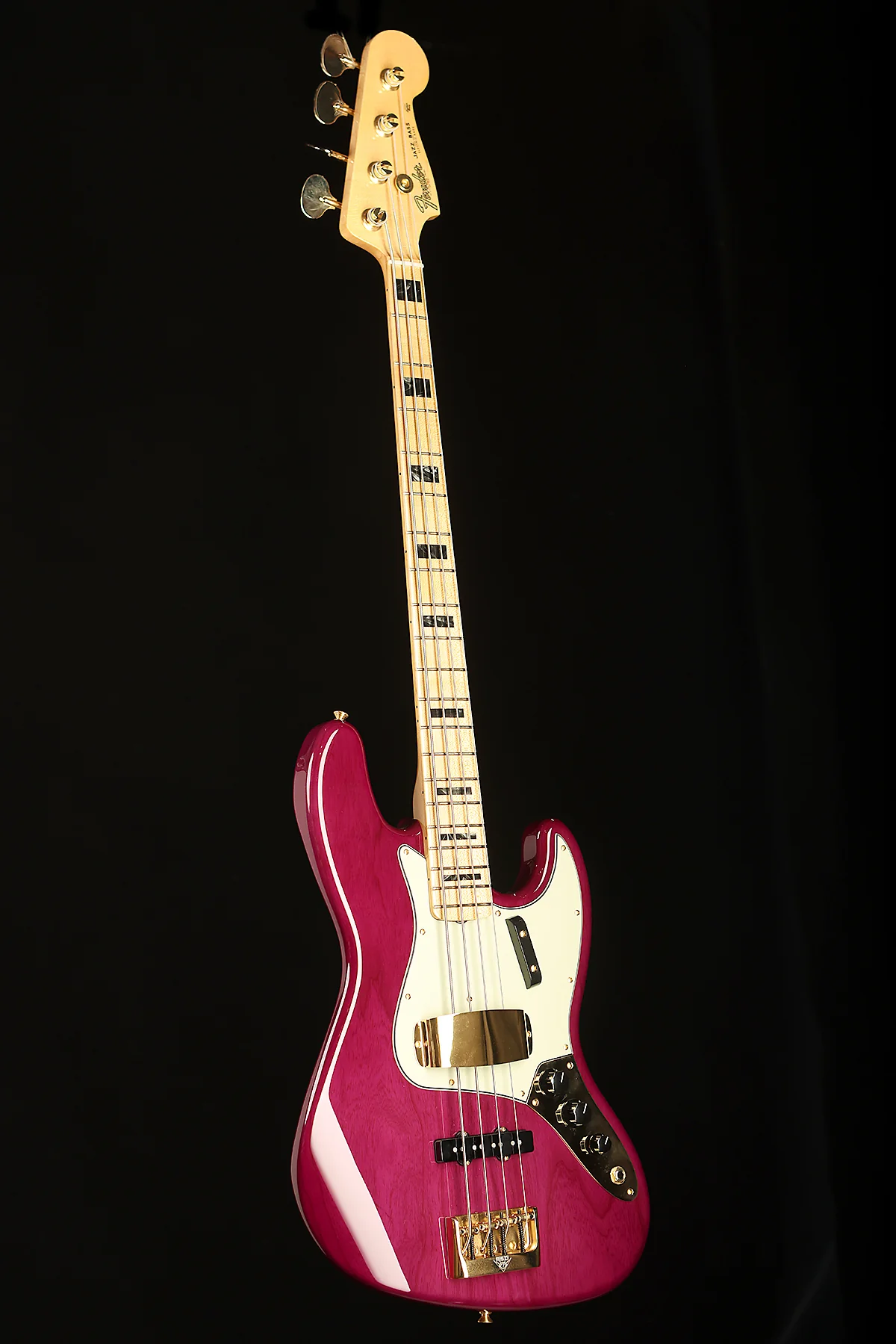

Fender American Custom Jazz Bass® NOS Limited

Fender  American Custom Jazz Bass® NOS Limited Purple Transparent

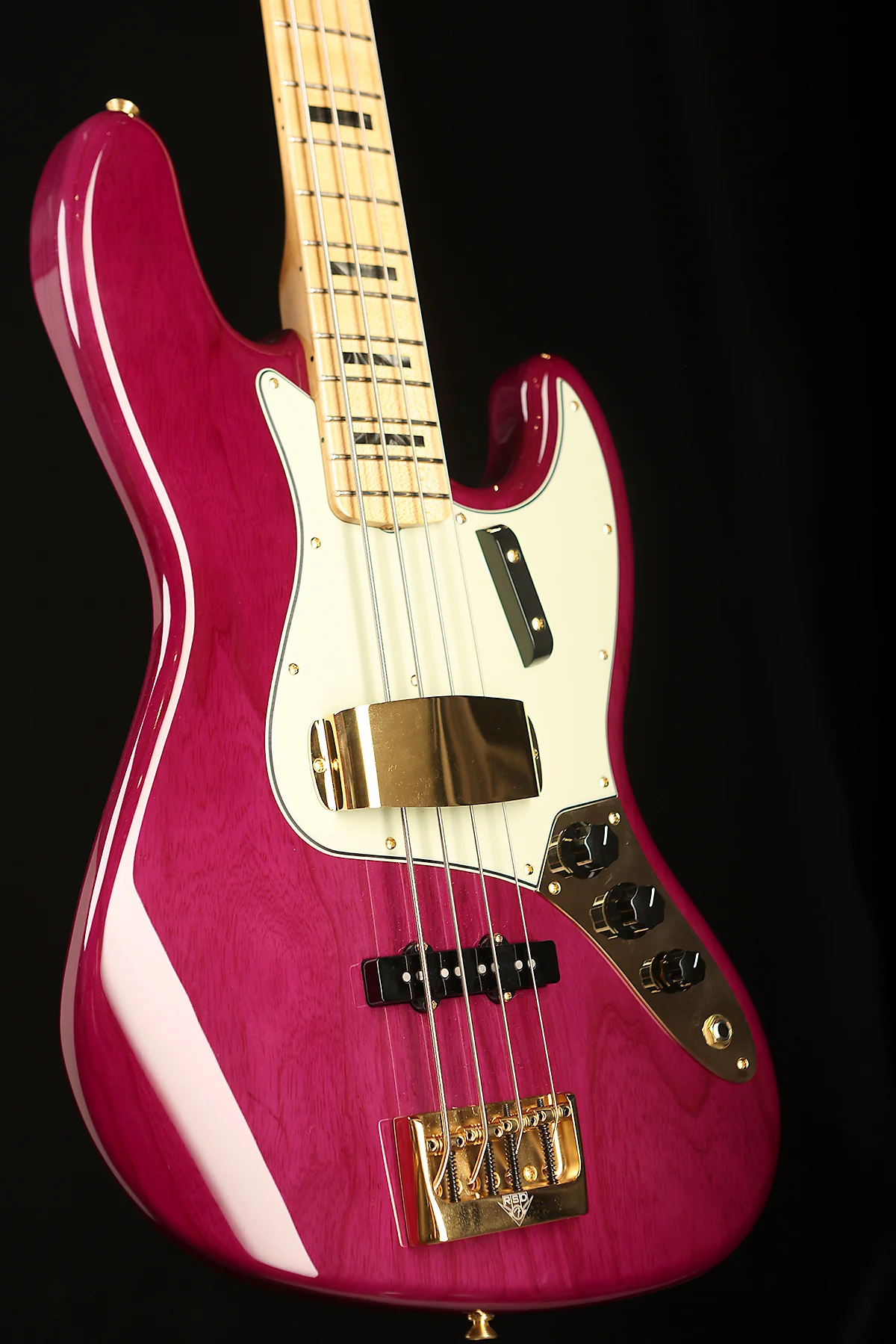

Expertly built by the Fender Custom Shop, the American Custom Jazz Bass® NOS brings together vintage Fender character and modern refinement. Its lightweight two-piece select ash body, finished in nitrocellulose lacquer, delivers both resonance and a timeless aesthetic. Paired with a quartersawn maple neck carved to a comfortable 1960 Jazz Bass® “U” profile, this instrument offers exceptional stability and a classic playing feel.

Hand-Wound Custom Shop Jazz Bass pickups provide the warm, punchy, and expressive tone that made the J-Bass legendary. With dual volume controls and a master tone circuit wired to ’64 Jazz Bass® specs, players can shape their sound with precision. Premium hardware — including vintage oval paddle tuners and an RSD HiMass™ bridge — ensures rock-solid tuning and impressive sustain. Complete with a deluxe hardshell case and Certificate of Authenticity, this NOS Jazz Bass is built for players who demand the very best.

---

Specifications

General

• Model: American Custom Jazz Bass® NOS

• Body Shape: Jazz Bass®

• Body Style: Solid Body

Body

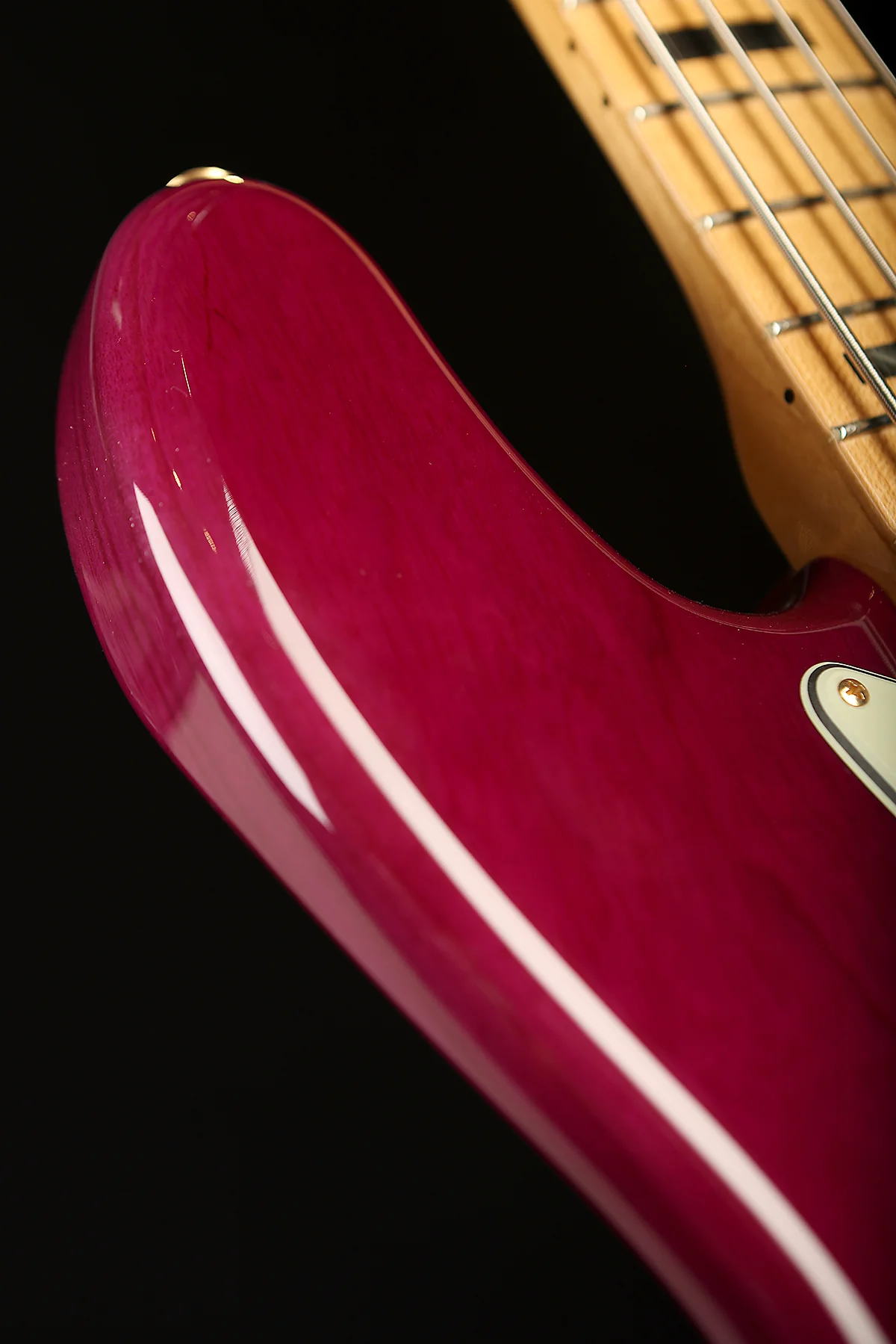

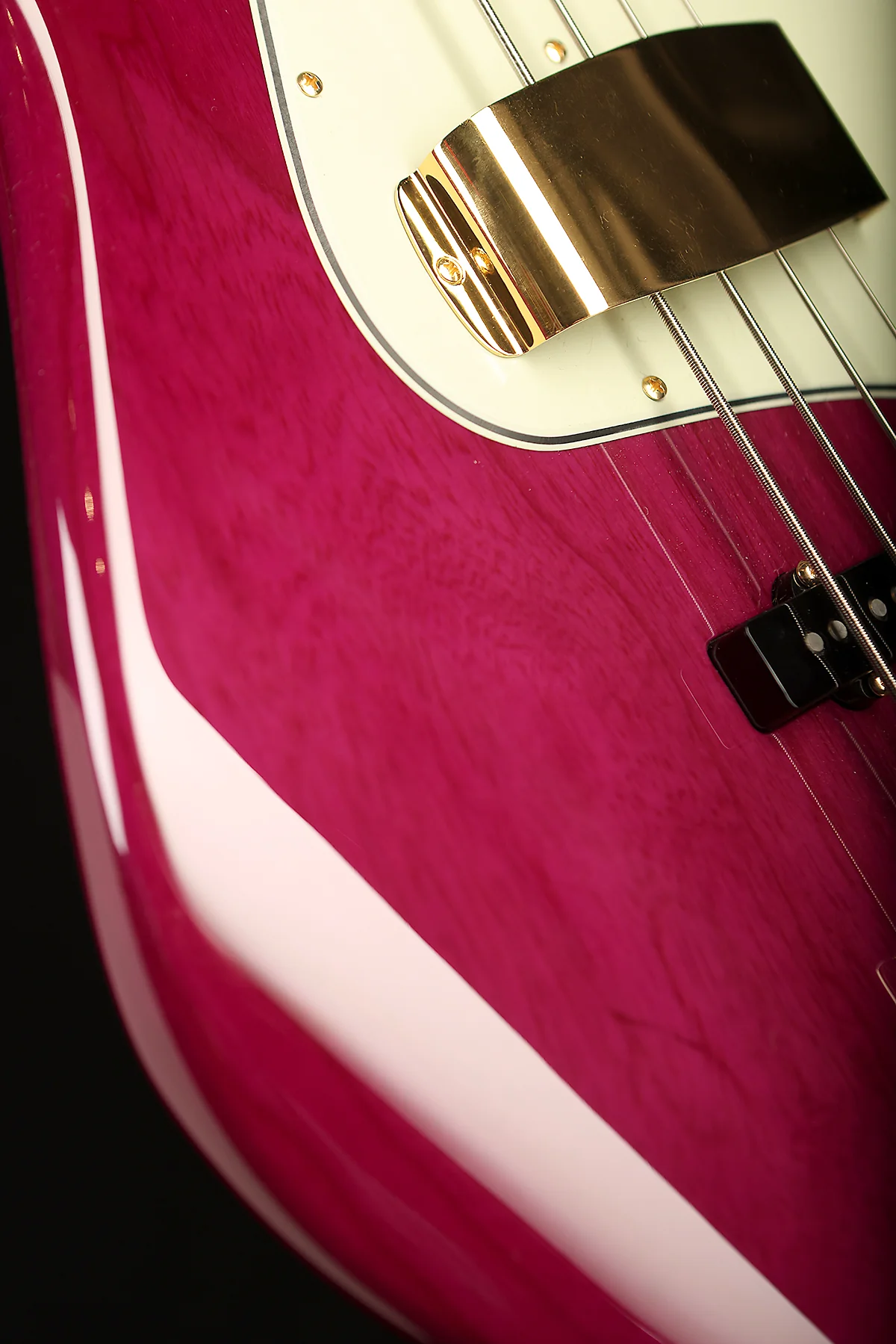

• Body Material: 2-Piece Select Ash

• Body Finish: WLS Undercoat / Nitrocellulose Lacquer

• Pickguard: 3-Ply Mint Green

Neck

• Neck Material: Quartersawn Maple

• Neck Finish: Nitrocellulose Lacquer

• Neck Shape: 1960 Jazz Bass® “U”

• Neck Thickness:

  • 1st Fret: .770"

  • 12th Fret: .900"

• Neck Butt Width: 2.500"

• Scale Length: 34" (864 mm)

• Truss Rod: Vintage-Style Heel Adjust

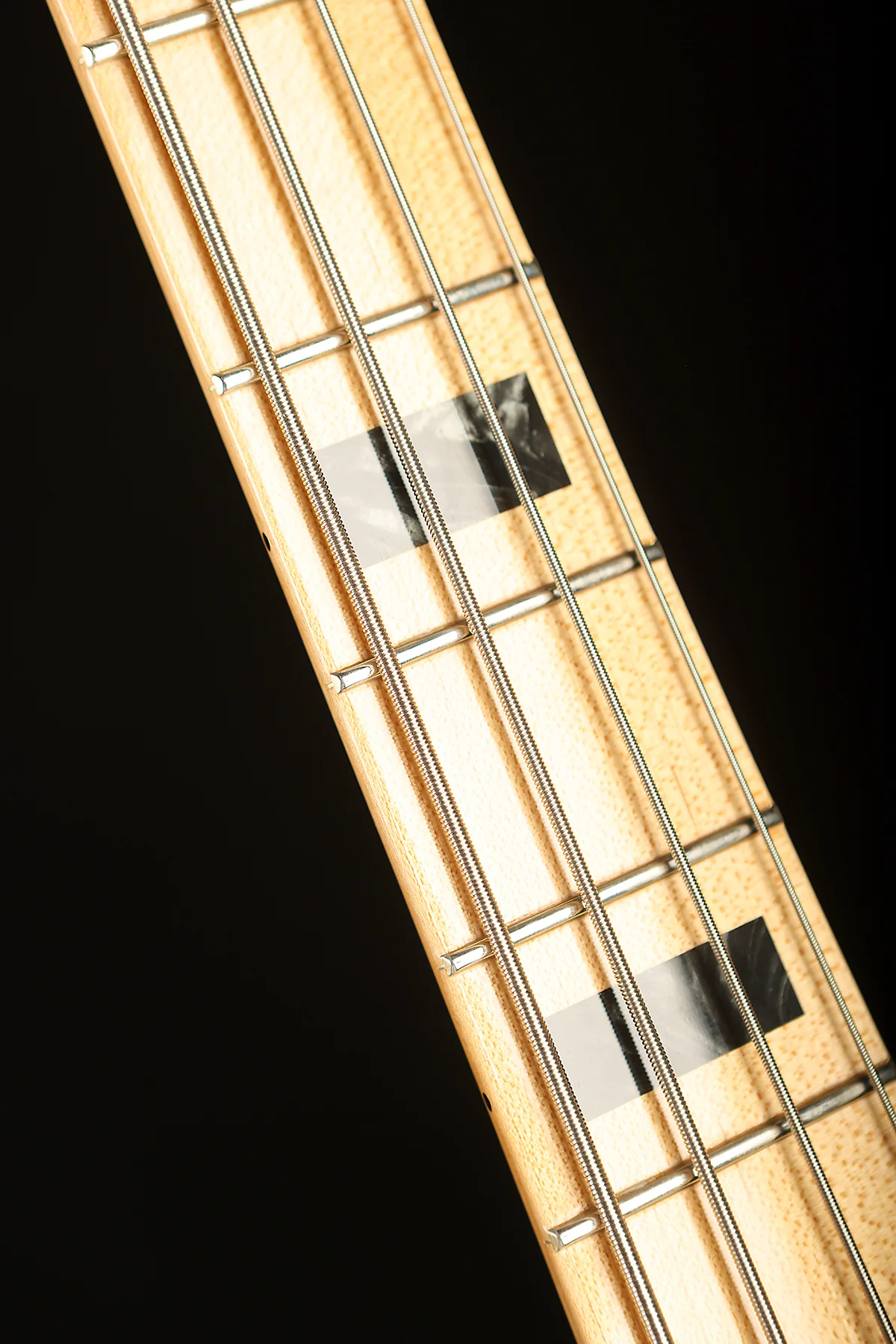

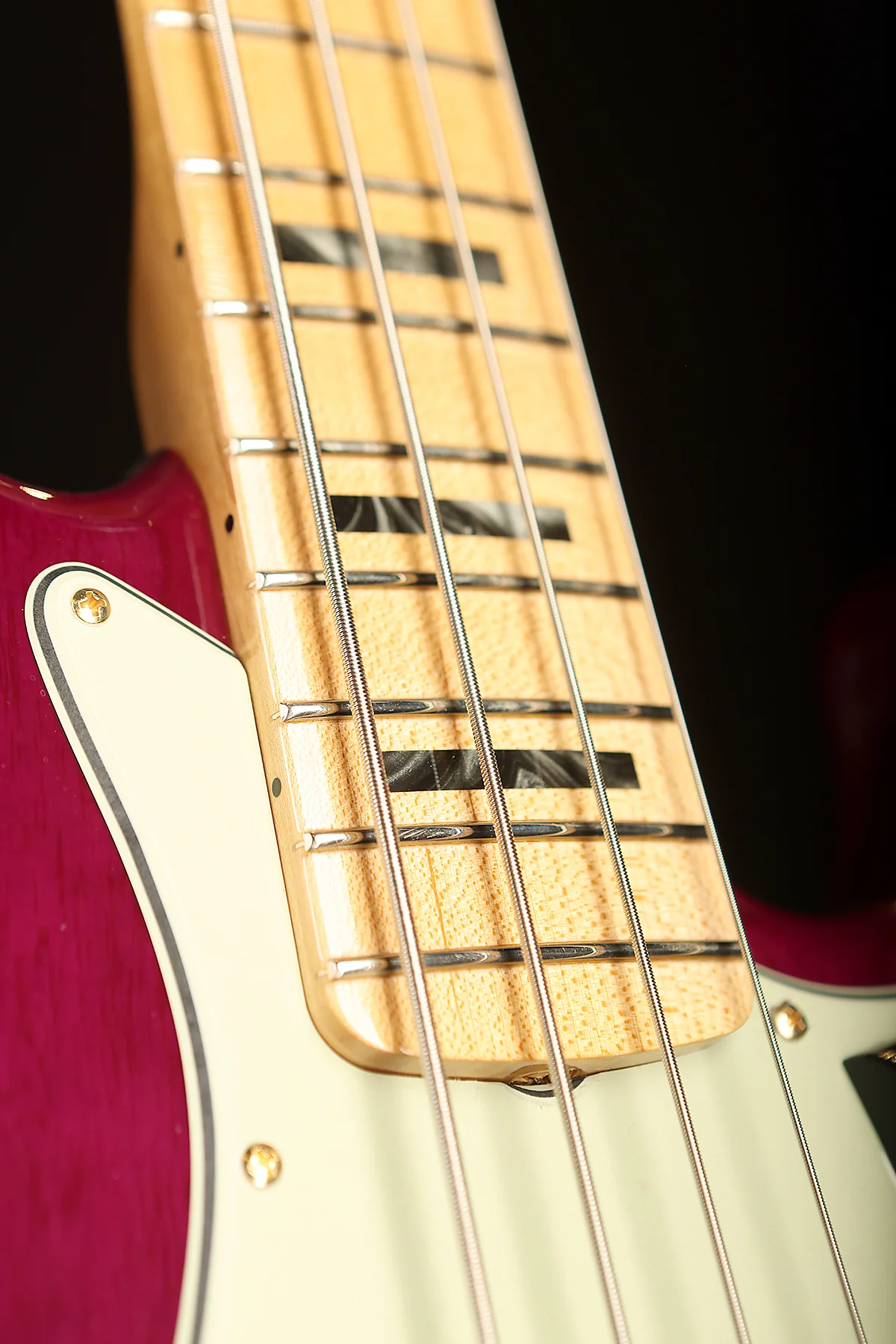

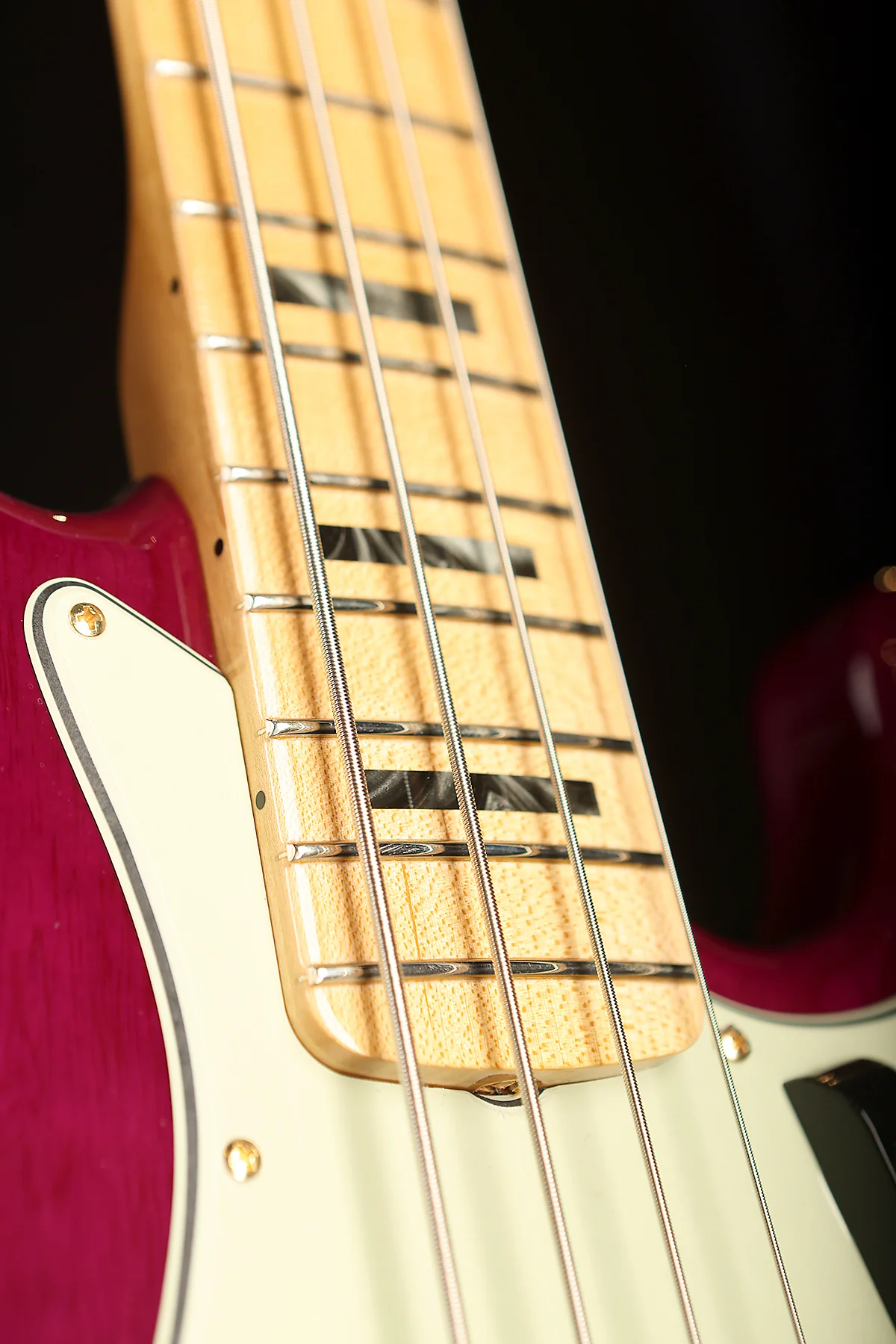

Fingerboard

• Fingerboard Material: Quartersawn Maple (or Ebony on select builds)

• Fingerboard Radius: 9.5" (241 mm)

• Position Inlays: White Pearloid Block

• Number of Frets: 20

• Fret Size: Medium Jumbo (6150)

Nut & Hardware

• Nut Material: Bone

• Nut Width: 1.5" (38.1 mm)

• Hardware Finish: Gold

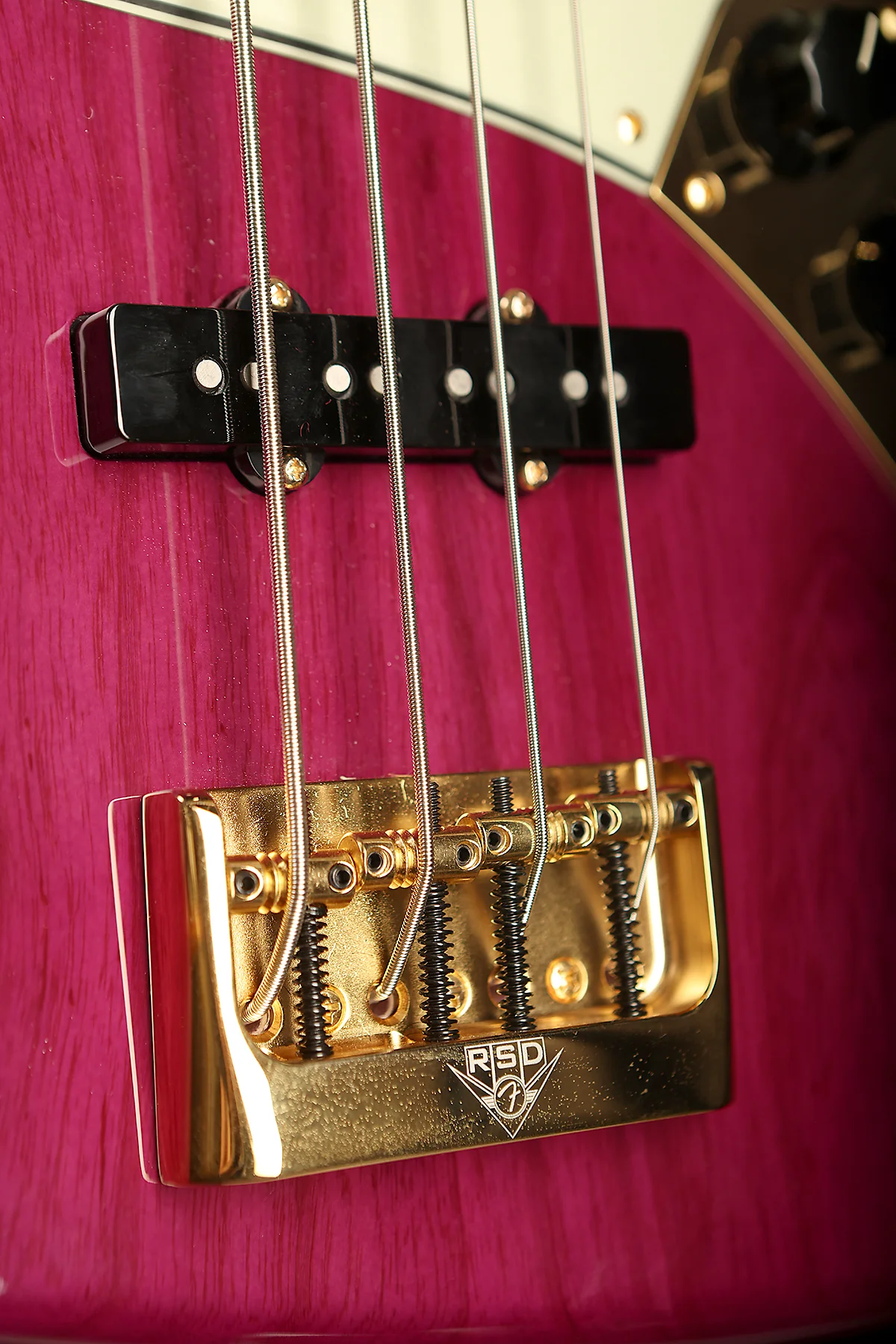

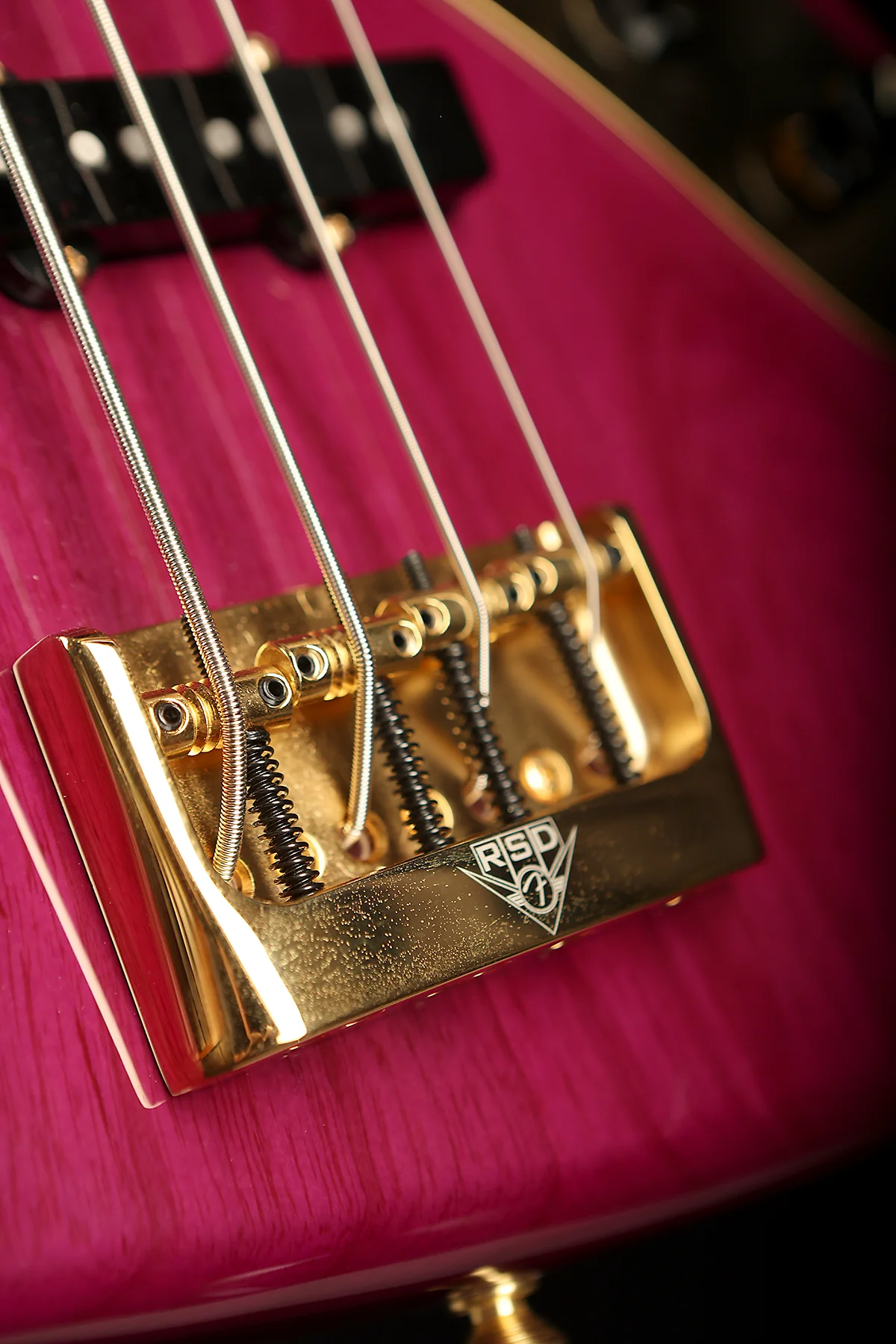

• Bridge: RSD Designed HiMass™

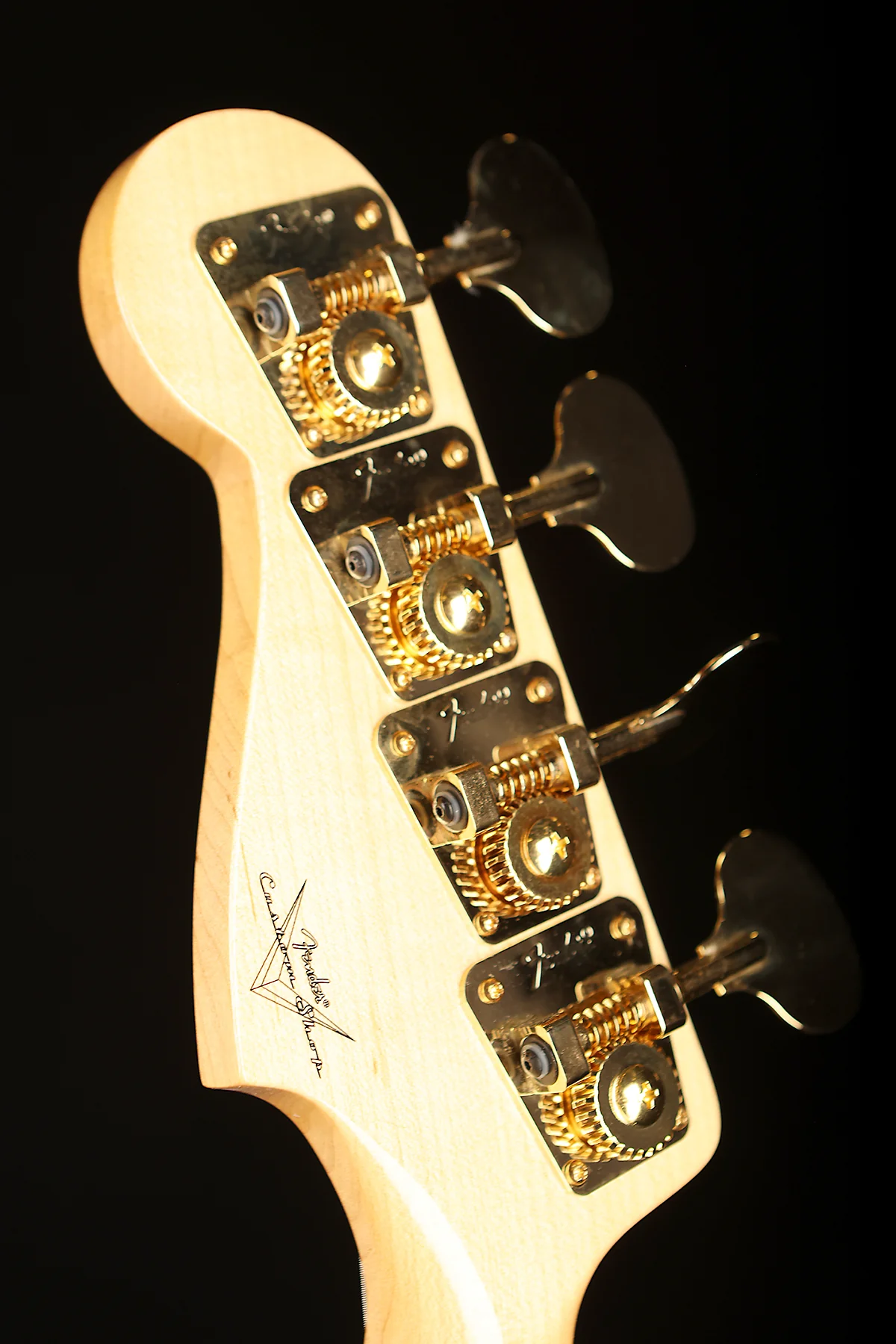

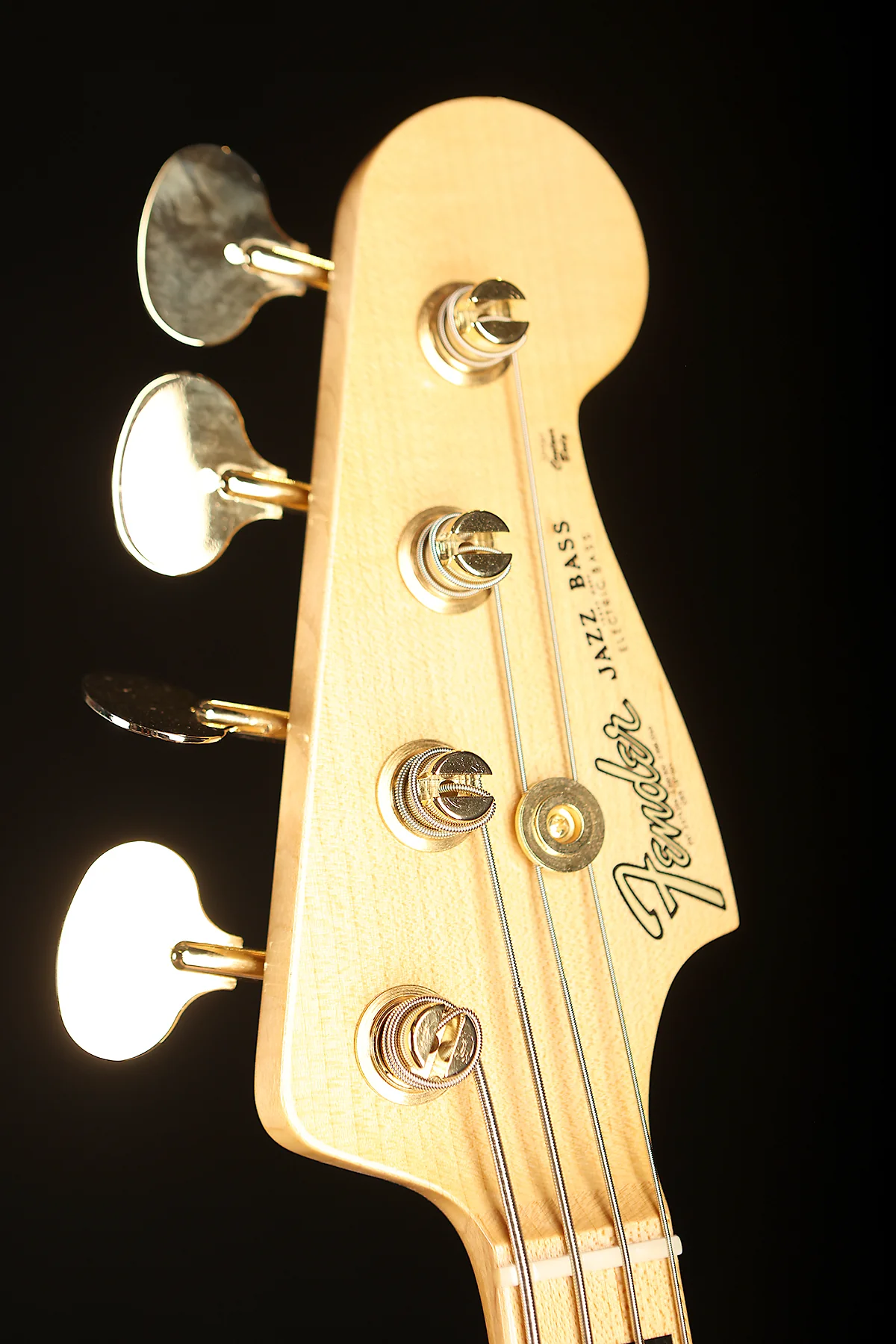

• Tuning Machines: Vintage Oval Paddle

• String Tree: Vintage-Style Disc

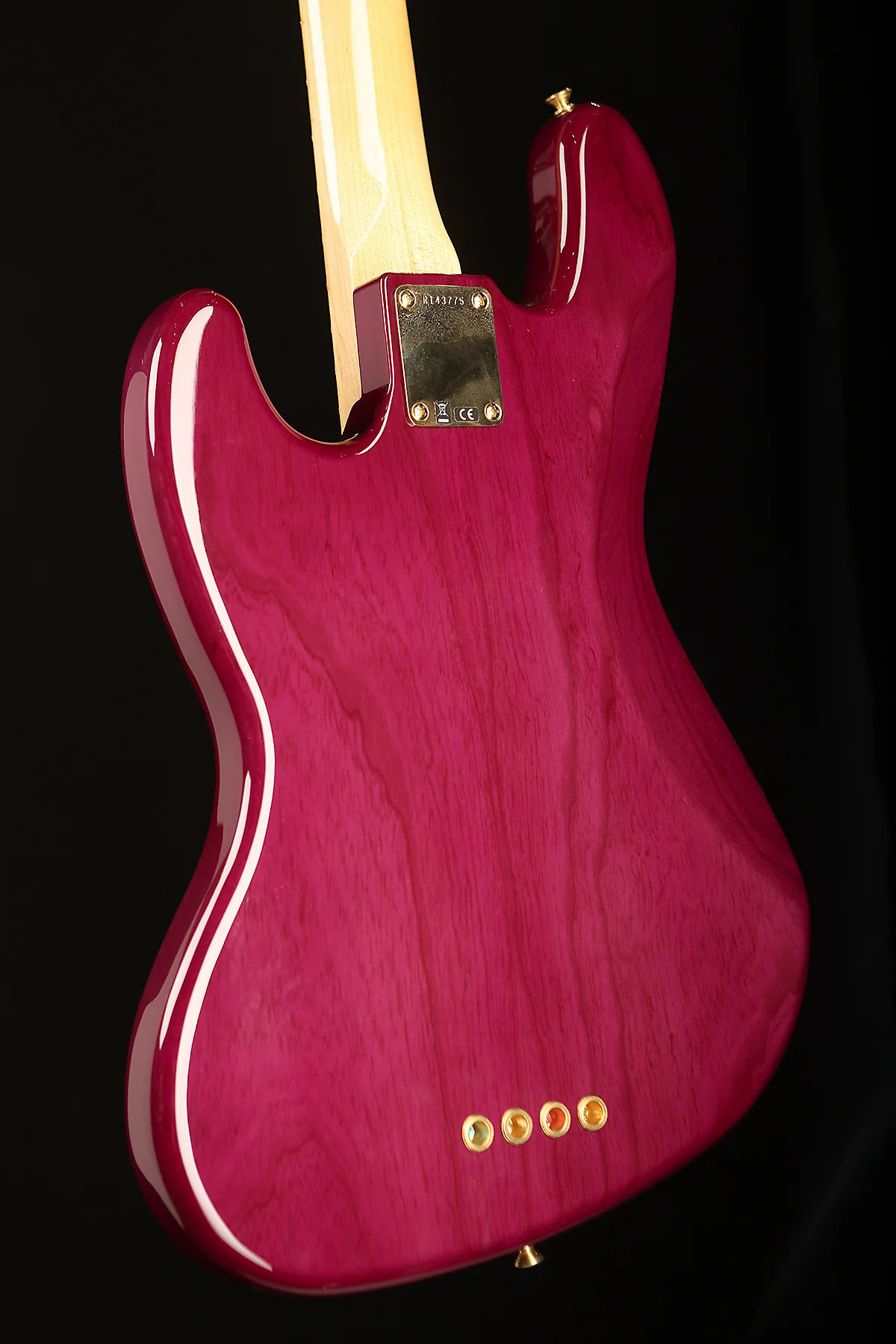

• Neck Plate: 4-Bolt, Custom Shop “V” Logo, Serialized

• Strings: Nickel Plated Steel (.045–.105)

• Control Knobs: Black Skirted with Indicator

Electronics

• Pickup Configuration: SS

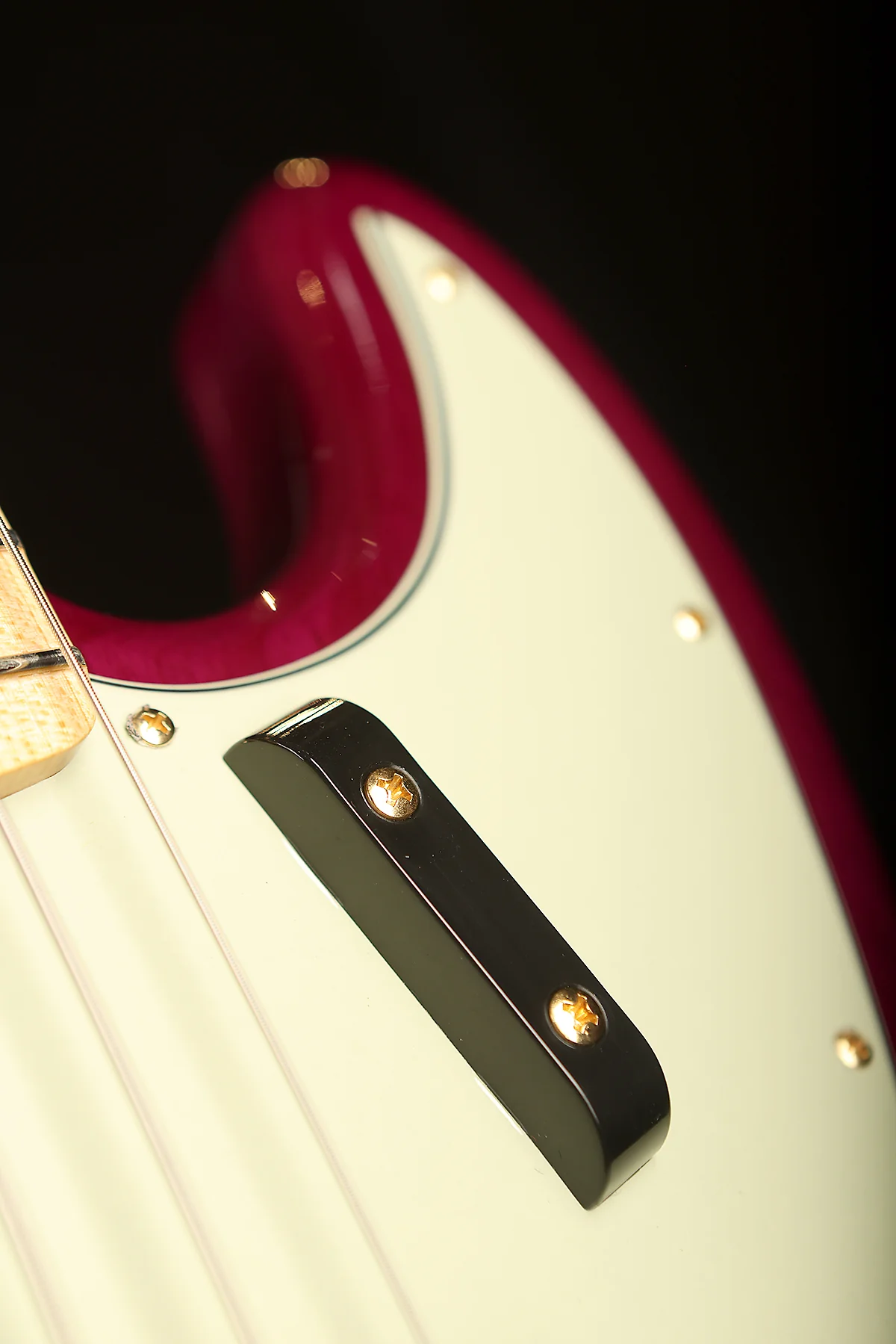

• Bridge Pickup: Custom Shop Hand-Wound Vintage Jazz Bass®

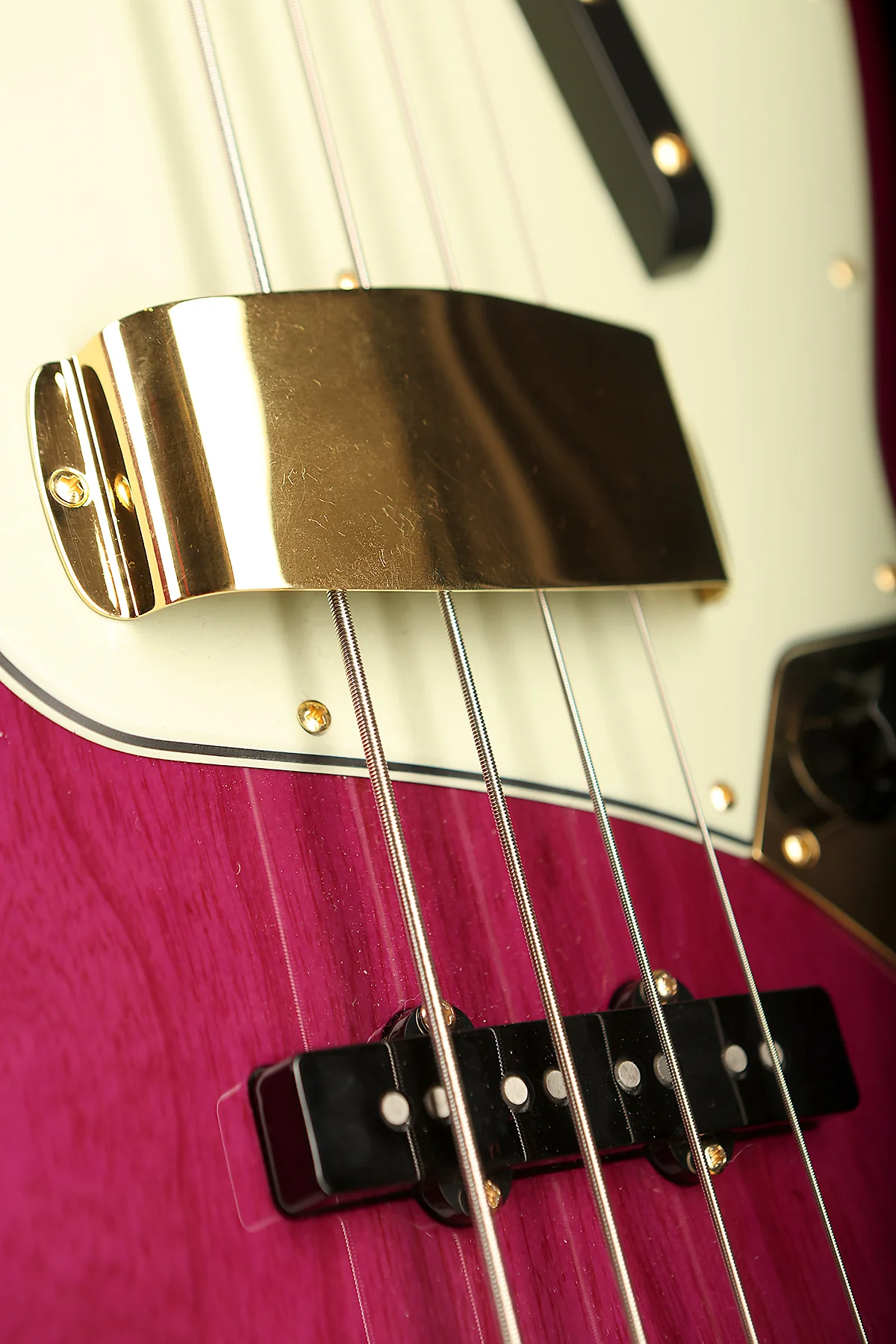

• Neck Pickup: Custom Shop Hand-Wound Vintage Jazz Bass®

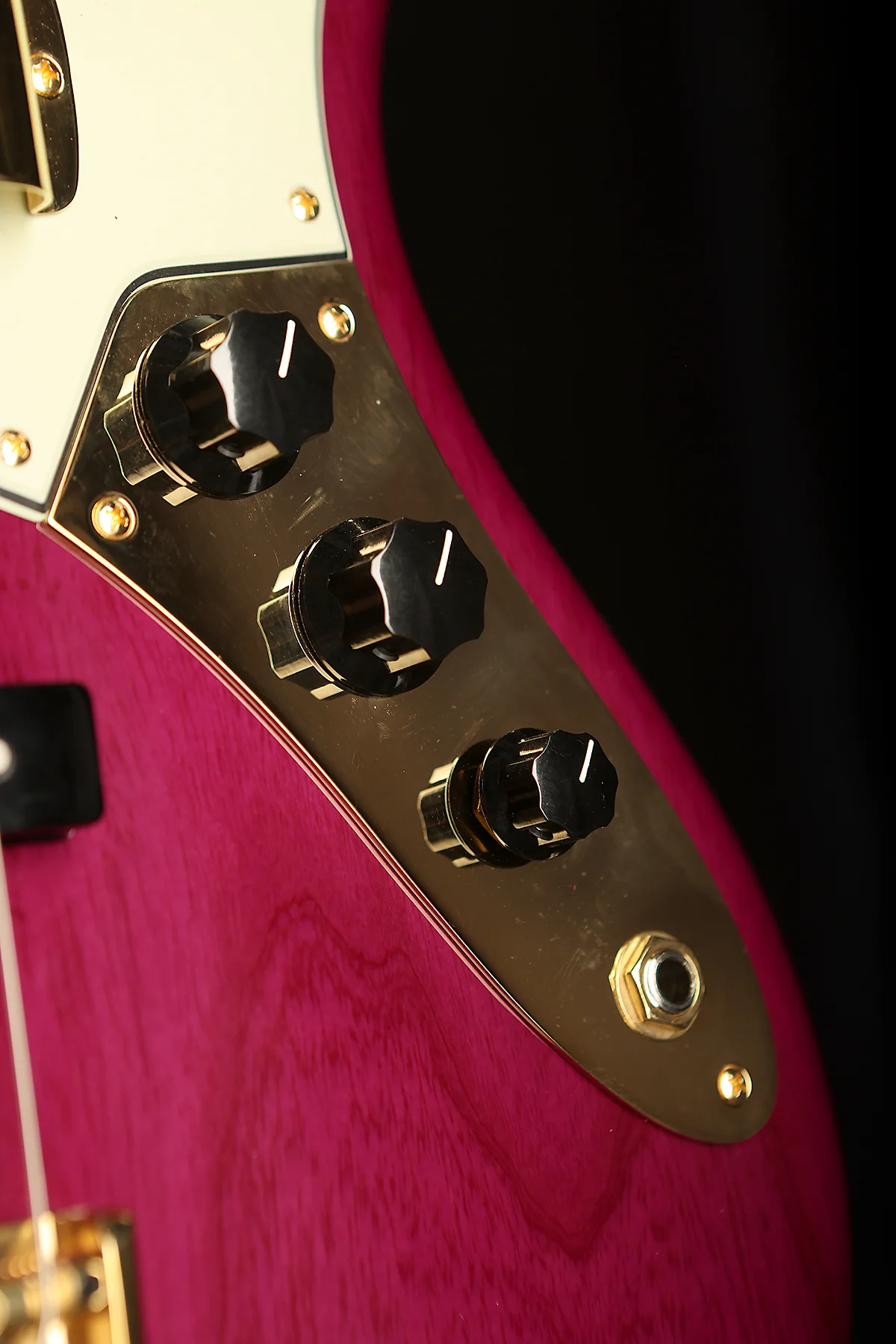

• Controls:

  • Volume 1 (Neck Pickup)

  • Volume 2 (Bridge Pickup)

  • Master Tone

• Switching: None

• Wiring: ’64 Jazz Bass® Style

Included Accessories

• Deluxe Hardshell Case

• Strap

• Certificate of Authenticity
