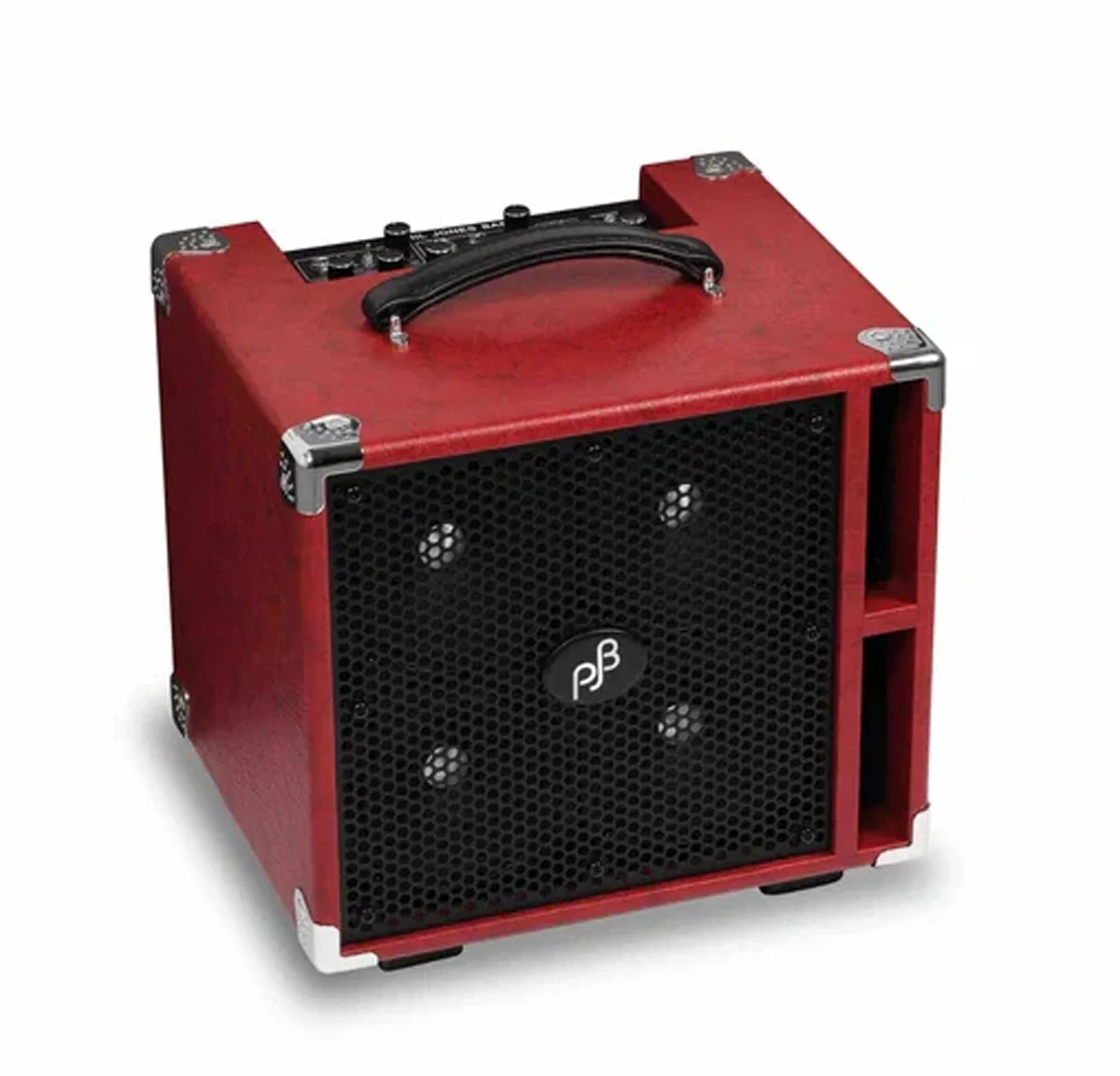

Phil Jones BG-450 Compact Plus Combo

Model: BG-450

Speaker Driver： 4X5 Inch PJB Driver

Amplifier
A class D amplifier with digital switch-mode power supply.
Power output: 300W internal speakers, 500 Watts with 8ohm external speaker

Signal to Noise Ratio：≥85 dB(A) (EQ off, Volume on Full.)

Impedance
Passive Input: >2MΩ/22pF
Active Input: >100KΩ/22pF
Line Input: >22KΩ
Pre Amp Line Out: < 2KΩ
Bal. Out: <200Ω

Levels
Passive Input: 10mV-1.5V
Active Input: 20mV-4.5V
Line Input:600mV
Pre Amp Line Out: 1.2V
Bal.Out: Typical 500mV

EQ: CENTER FREQUENCIES
50Hz, 160Hz, 630Hz, 2.5KHz,12KHz at +/- 18dB

Product Size:：361(W)x362(H)x336(D)mm
14.21(W)x14.25(H)x13.24(D)inch
Net Weight: 14 Kg(31 lbs)
