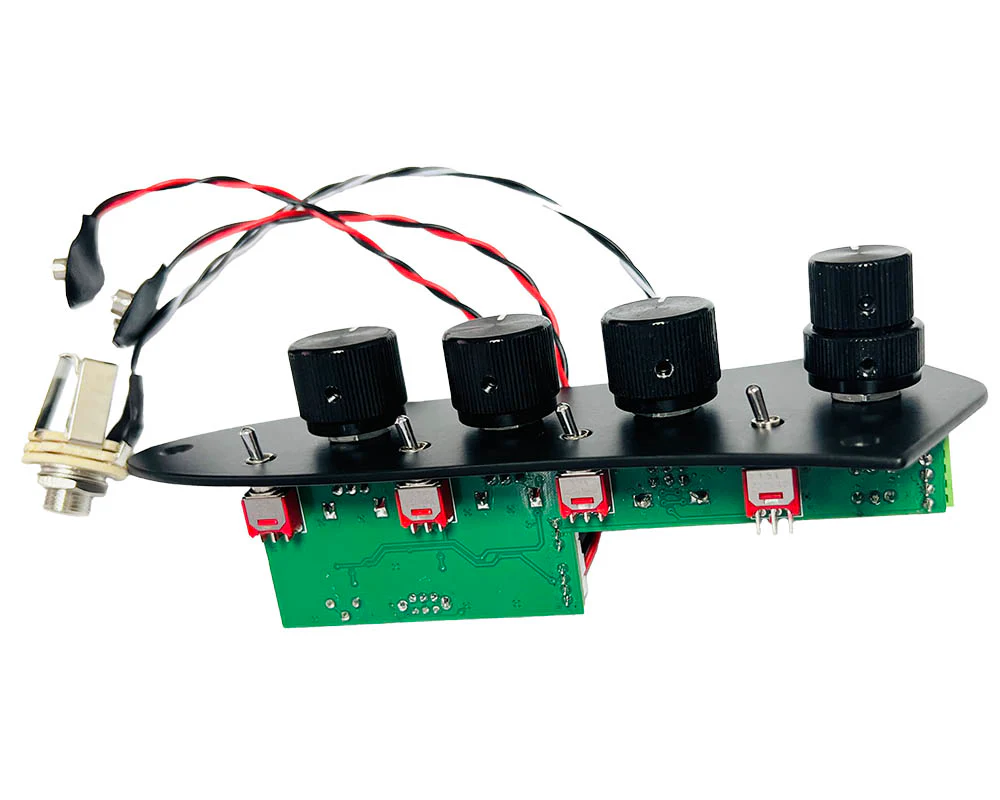

WAYNE JONES WJA-3B Onboard Bass Guitar PreAmp

WAYNE JONES WJA-3B Onboard Bass Guitar PreAmp

The most significant difference lies in how we set the EQ frequencies and bandwidth, particularly for the low end. Utilizing the proven WJBP EQ design method, we’ve crafted an onboard preamp that stands apart.

• Stacked Volume / Pickup Blend knob
• Treble control with 6 kHz / 10 kHz switchable
• Mid control with 350 Hz / 600 Hz switchable
• Bass control with 44 Hz / 80 Hz switchable
• Active / Passive mini toggle switch
• Runs on single 9V or dual 9V (18V) for more headroom
• Includes both 9V and 18V battery cables

INSTALLATION

Fits most Fender-style Jazz Bass cavities.

Recommended: increase cavity depth by 2–3 mm for optimal fit.

https://www.waynejonesaudio.com/wja-3b-onboard-bass-guitar-preamp/?preview=true

Some models may require minor routing adjustments.
